Reply message class. More...

#include <message.hh>

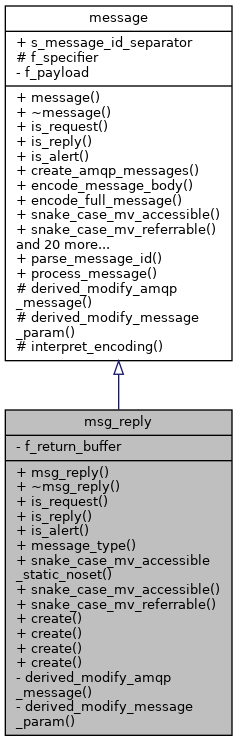

Inheritance diagram for msg_reply:

Public Member Functions
	msg_reply ()

virtual	~msg_reply ()

bool	is_request () const

bool	is_reply () const

bool	is_alert () const

virtual msg_t	message_type () const

	snake_case_mv_accessible_static_noset (msg_t, message_type)

	snake_case_mv_accessible (unsigned, return_code)

	snake_case_mv_referrable (std::string, return_message)

Public Member Functions inherited from message
	message ()

virtual	~message ()

amqp_split_message_ptrs	create_amqp_messages (unsigned a_max_size=10000)
	Converts a Dripline message object to a set of AMQP messages. More...

void	encode_message_body (std::vector< std::string > &a_body_vec, unsigned a_max_size, const scarab::param_node &a_options=scarab::param_node()) const
	Converts the message-body to a strings (default encoding is JSON) for creating AMQP messages. More...

std::string	encode_full_message (unsigned a_max_size, const scarab::param_node &a_options=scarab::param_node()) const
	Converts the entire message into a single string (default encoding is JSON) More...

	snake_case_mv_accessible (bool, is_valid)
	Flag indicating whether the message was correctly converted from one or more AMQP messages. More...

	snake_case_mv_referrable (std::string, routing_key)

	snake_case_mv_referrable (std::string, correlation_id)

	snake_case_mv_referrable (std::string, message_id)

	snake_case_mv_referrable (std::string, reply_to)

	snake_case_mv_accessible (encoding, encoding)

	snake_case_mv_referrable (std::string, timestamp)

	snake_case_mv_referrable (std::string, sender_exe)

	snake_case_mv_referrable (std::string, sender_hostname)

	snake_case_mv_referrable (std::string, sender_username)

	snake_case_mv_referrable (std::string, sender_service_name)

	snake_case_mv_referrable (sender_version_map_t, sender_versions)

specifier &	parsed_specifier ()

const specifier &	parsed_specifier () const

scarab::param_node	get_sender_info () const
	Creates and returns a new param_node object to contain the sender info. More...

void	set_sender_info (const scarab::param_node &a_sender_info)
	Copies the sender info out of a param_node. More...

scarab::param_node	get_message_param (bool a_include_payload=true) const
	Creates and returns a new param_node object to contain the full message. More...

scarab::param &	payload ()

const scarab::param &	payload () const

void	set_payload (scarab::param_ptr_t a_payload)

const scarab::param_ptr_t &	get_payload_ptr () const

Static Public Member Functions
static reply_ptr_t	create (const return_code &a_return_code, const std::string &a_ret_msg, scarab::param_ptr_t a_payload, const std::string &a_routing_key, const std::string &a_specifier="", message::encoding a_encoding=encoding::json)
	Create a reply message using a return_code object and manually specifying the destination. More...

static reply_ptr_t	create (unsigned a_return_code_value, const std::string &a_ret_msg, scarab::param_ptr_t a_payload, const std::string &a_routing_key, const std::string &a_specifier="", message::encoding a_encoding=encoding::json)
	Create a reply message using an integer return code and manually specifying the destination. More...

static reply_ptr_t	create (const return_code &a_return_code, const std::string &a_ret_msg, scarab::param_ptr_t a_payload, const msg_request &a_request)
	Create a reply message using a return_code object and a request message for the destination and correlation ID. More...

static reply_ptr_t	create (unsigned a_return_code, const std::string &a_ret_msg, scarab::param_ptr_t a_payload, const msg_request &a_request)
	Create a reply message using an integer return code and a request message for the destination and correlation ID. More...

Static Public Member Functions inherited from message
static std::tuple< std::string, unsigned, unsigned >	parse_message_id (const std::string &a_message_id)
	Parses the message ID, which should be of the form [UUID]/[chunk]/[total chunks]. More...

static message_ptr_t	process_message (amqp_split_message_ptrs a_message_ptrs, const std::string &a_routing_key)
	Converts a set of AMQP messages to a Dripline message object. More...

Private Member Functions
void	derived_modify_amqp_message (amqp_message_ptr a_amqp_msg, AmqpClient::Table &a_properties) const

virtual void	derived_modify_message_param (scarab::param_node &a_message_node) const

Private Attributes
std::string	f_return_buffer

Additional Inherited Members
Public Types inherited from message
enum	encoding { json }

typedef std::map< std::string, sender_package_version >	sender_version_map_t

Static Public Attributes inherited from message
static const char	s_message_id_separator = '/'

Protected Member Functions inherited from message
std::string	interpret_encoding () const

Protected Attributes inherited from message
specifier	f_specifier

Detailed Description

Reply message class.

Author: N.S. Oblath

Adds the return code and return message.

Reply messages can be created with the create() functions. A variety of create() function overloads are available, depending on whether the return code is specified with a return_code object or as an int, and depending on whether a request message is used to fill out some of the header information or if it's done manually.

Definition at line 229 of file message.hh.

Constructor & Destructor Documentation

◆ msg_reply()

msg_reply ( )

Definition at line 514 of file message.cc.

◆ ~msg_reply()

~msg_reply ( )

virtual

Definition at line 522 of file message.cc.

Member Function Documentation

◆ create() [1/4]

static reply_ptr_t create	(	const return_code &	a_return_code,
		const std::string &	a_ret_msg,
		scarab::param_ptr_t	a_payload,
		const std::string &	a_routing_key,
		const std::string &	a_specifier = `""`,
		message::encoding	a_encoding = `encoding::json`
	)

static

Create a reply message using a return_code object and manually specifying the destination.

◆ create() [2/4]

static reply_ptr_t create	(	unsigned	a_return_code_value,
		const std::string &	a_ret_msg,
		scarab::param_ptr_t	a_payload,
		const std::string &	a_routing_key,
		const std::string &	a_specifier = `""`,
		message::encoding	a_encoding = `encoding::json`
	)

static

Create a reply message using an integer return code and manually specifying the destination.

◆ create() [3/4]

reply_ptr_t create	(	const return_code &	a_return_code,
		const std::string &	a_ret_msg,
		scarab::param_ptr_t	a_payload,
		const msg_request &	a_request
	)

inlinestatic

Create a reply message using a return_code object and a request message for the destination and correlation ID.

Definition at line 393 of file message.hh.

◆ create() [4/4]

reply_ptr_t create	(	unsigned	a_return_code,
		const std::string &	a_ret_msg,
		scarab::param_ptr_t	a_payload,
		const msg_request &	a_request
	)

inlinestatic

Create a reply message using an integer return code and a request message for the destination and correlation ID.

Definition at line 398 of file message.hh.

◆ derived_modify_amqp_message()

void derived_modify_amqp_message	(	amqp_message_ptr	a_amqp_msg,
		AmqpClient::Table &	a_properties
	)		const

inlineprivatevirtual

Implements message.

Definition at line 418 of file message.hh.

◆ derived_modify_message_param()

void derived_modify_message_param ( scarab::param_node & a_message_node ) const

inlineprivatevirtual

Implements message.

Definition at line 425 of file message.hh.

◆ is_alert()

bool is_alert ( ) const

inlinevirtual

Implements message.

Definition at line 413 of file message.hh.

◆ is_reply()

bool is_reply ( ) const

inlinevirtual

Implements message.

Definition at line 409 of file message.hh.

◆ is_request()

bool is_request ( ) const

inlinevirtual

Implements message.

Definition at line 405 of file message.hh.

◆ message_type()

msg_t message_type ( ) const

virtual

Implements message.

Definition at line 546 of file message.cc.

◆ snake_case_mv_accessible()

snake_case_mv_accessible	(	unsigned	,
		return_code
	)

◆ snake_case_mv_accessible_static_noset()

snake_case_mv_accessible_static_noset	(	msg_t	,
		message_type
	)

◆ snake_case_mv_referrable()

snake_case_mv_referrable	(	std::string	,
		return_message
	)

Member Data Documentation

◆ f_return_buffer

std::string f_return_buffer

mutableprivate

Definition at line 260 of file message.hh.

The documentation for this class was generated from the following files:
