Request message class. More...

#include <message.hh>

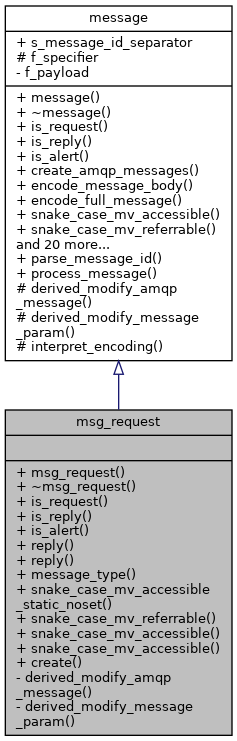

Inheritance diagram for msg_request:

Public Member Functions
	msg_request ()

virtual	~msg_request ()

bool	is_request () const

bool	is_reply () const

bool	is_alert () const

reply_ptr_t	reply (const return_code &a_return_code, const std::string &a_ret_msg, scarab::param_ptr_t a_payload=scarab::param_ptr_t(new scarab::param())) const
	Creates a reply message using the reply-to and correlation ID information in this message. More...

reply_ptr_t	reply (const unsigned a_return_code, const std::string &a_ret_msg, scarab::param_ptr_t a_payload=scarab::param_ptr_t(new scarab::param())) const
	Creates a reply message using the reply-to and correlation ID information in this message. More...

virtual msg_t	message_type () const

	snake_case_mv_accessible_static_noset (msg_t, message_type)

	snake_case_mv_referrable (uuid_t, lockout_key)

	snake_case_mv_accessible (bool, lockout_key_valid)

	snake_case_mv_accessible (op_t, message_operation)

Public Member Functions inherited from message
	message ()

virtual	~message ()

amqp_split_message_ptrs	create_amqp_messages (unsigned a_max_size=10000)
	Converts a Dripline message object to a set of AMQP messages. More...

void	encode_message_body (std::vector< std::string > &a_body_vec, unsigned a_max_size, const scarab::param_node &a_options=scarab::param_node()) const
	Converts the message-body to a strings (default encoding is JSON) for creating AMQP messages. More...

std::string	encode_full_message (unsigned a_max_size, const scarab::param_node &a_options=scarab::param_node()) const
	Converts the entire message into a single string (default encoding is JSON) More...

	snake_case_mv_accessible (bool, is_valid)
	Flag indicating whether the message was correctly converted from one or more AMQP messages. More...

	snake_case_mv_referrable (std::string, routing_key)

	snake_case_mv_referrable (std::string, correlation_id)

	snake_case_mv_referrable (std::string, message_id)

	snake_case_mv_referrable (std::string, reply_to)

	snake_case_mv_accessible (encoding, encoding)

	snake_case_mv_referrable (std::string, timestamp)

	snake_case_mv_referrable (std::string, sender_exe)

	snake_case_mv_referrable (std::string, sender_hostname)

	snake_case_mv_referrable (std::string, sender_username)

	snake_case_mv_referrable (std::string, sender_service_name)

	snake_case_mv_referrable (sender_version_map_t, sender_versions)

specifier &	parsed_specifier ()

const specifier &	parsed_specifier () const

scarab::param_node	get_sender_info () const
	Creates and returns a new param_node object to contain the sender info. More...

void	set_sender_info (const scarab::param_node &a_sender_info)
	Copies the sender info out of a param_node. More...

scarab::param_node	get_message_param (bool a_include_payload=true) const
	Creates and returns a new param_node object to contain the full message. More...

scarab::param &	payload ()

const scarab::param &	payload () const

void	set_payload (scarab::param_ptr_t a_payload)

const scarab::param_ptr_t &	get_payload_ptr () const

Static Public Member Functions
static request_ptr_t	create (scarab::param_ptr_t a_payload, op_t a_msg_op, const std::string &a_routing_key, const std::string &a_specifier="", const std::string &a_reply_to="", message::encoding a_encoding=encoding::json)
	Create a request message. More...

Static Public Member Functions inherited from message
static std::tuple< std::string, unsigned, unsigned >	parse_message_id (const std::string &a_message_id)
	Parses the message ID, which should be of the form [UUID]/[chunk]/[total chunks]. More...

static message_ptr_t	process_message (amqp_split_message_ptrs a_message_ptrs, const std::string &a_routing_key)
	Converts a set of AMQP messages to a Dripline message object. More...

Private Member Functions
void	derived_modify_amqp_message (amqp_message_ptr a_amqp_msg, AmqpClient::Table &a_properties) const

virtual void	derived_modify_message_param (scarab::param_node &a_message_node) const

Additional Inherited Members
Public Types inherited from message
enum	encoding { json }

typedef std::map< std::string, sender_package_version >	sender_version_map_t

Static Public Attributes inherited from message
static const char	s_message_id_separator = '/'

Protected Member Functions inherited from message
std::string	interpret_encoding () const

Protected Attributes inherited from message
specifier	f_specifier

Detailed Description

Request message class.

Author: N.S. Oblath

Adds the lockout information and the message operation.

Requests can be created using the static function create().

Definition at line 174 of file message.hh.

Constructor & Destructor Documentation

◆ msg_request()

msg_request ( )

Definition at line 476 of file message.cc.

◆ ~msg_request()

~msg_request ( )

virtual

Definition at line 485 of file message.cc.

Member Function Documentation

◆ create()

request_ptr_t create	(	scarab::param_ptr_t	a_payload,
		op_t	a_msg_op,
		const std::string &	a_routing_key,
		const std::string &	a_specifier = `""`,
		const std::string &	a_reply_to = `""`,
		message::encoding	a_encoding = `encoding::json`
	)

static

Create a request message.

Definition at line 490 of file message.cc.

◆ derived_modify_amqp_message()

void derived_modify_amqp_message	(	amqp_message_ptr	a_amqp_msg,
		AmqpClient::Table &	a_properties
	)		const

inlineprivatevirtual

Implements message.

Definition at line 364 of file message.hh.

◆ derived_modify_message_param()

void derived_modify_message_param ( scarab::param_node & a_message_node ) const

inlineprivatevirtual

Implements message.

Definition at line 371 of file message.hh.

◆ is_alert()

bool is_alert ( ) const

inlinevirtual

Implements message.

Definition at line 359 of file message.hh.

◆ is_reply()

bool is_reply ( ) const

inlinevirtual

Implements message.

Definition at line 355 of file message.hh.

◆ is_request()

bool is_request ( ) const

inlinevirtual

Implements message.

Definition at line 351 of file message.hh.

◆ message_type()

msg_t message_type ( ) const

virtual

Implements message.

Definition at line 504 of file message.cc.

◆ reply() [1/2]

reply_ptr_t reply	(	const return_code &	a_return_code,
		const std::string &	a_ret_msg,
		scarab::param_ptr_t	a_payload = `scarab::param_ptr_t( new scarab::param() )`
	)		const

inline

Creates a reply message using the reply-to and correlation ID information in this message.

Definition at line 378 of file message.hh.

◆ reply() [2/2]

reply_ptr_t reply	(	const unsigned	a_return_code,
		const std::string &	a_ret_msg,
		scarab::param_ptr_t	a_payload = `scarab::param_ptr_t( new scarab::param() )`
	)		const

inline

Creates a reply message using the reply-to and correlation ID information in this message.

Definition at line 383 of file message.hh.

◆ snake_case_mv_accessible() [1/2]

snake_case_mv_accessible	(	bool	,
		lockout_key_valid
	)

◆ snake_case_mv_accessible() [2/2]

snake_case_mv_accessible	(	op_t	,
		message_operation
	)

◆ snake_case_mv_accessible_static_noset()

snake_case_mv_accessible_static_noset	(	msg_t	,
		message_type
	)

◆ snake_case_mv_referrable()

snake_case_mv_referrable	(	uuid_t	,
		lockout_key
	)

The documentation for this class was generated from the following files:
