relayer Class Reference

Asynchronous message sending. More...

#include <relayer.hh>

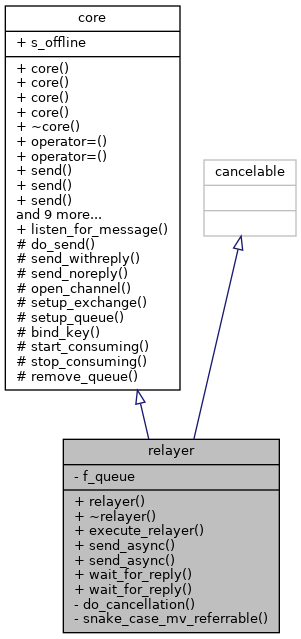

Inheritance diagram for relayer:

Classes
struct	message_and_reply
struct	wait_for_send_pkg
	Extended sent-message package that adds thread synchronization objects. More...

Public Types
typedef std::shared_ptr< wait_for_send_pkg >	wait_for_send_pkg_ptr

Public Member Functions
	relayer (const scarab::param_node &a_config=scarab::param_node(), const std::string &a_broker_address="", unsigned a_port=0, const std::string &a_auth_file="")
virtual	~relayer ()
void	execute_relayer ()
	Thread execution function: sends any messages that are submitted via the send functions. More...
wait_for_send_pkg_ptr	send_async (request_ptr_t a_request) const
wait_for_send_pkg_ptr	send_async (alert_ptr_t a_alert) const
reply_ptr_t	wait_for_reply (const wait_for_send_pkg_ptr a_receive_reply, int a_timeout_ms=0)
reply_ptr_t	wait_for_reply (const wait_for_send_pkg_ptr a_receive_reply, bool &a_chan_valid, int a_timeout_ms=0)
Public Member Functions inherited from core
	core (const scarab::param_node &a_config=scarab::param_node(), const std::string &a_broker_address="", unsigned a_port=0, const std::string &a_auth_file="", const bool a_make_connection=true)
	core (const bool a_make_connection, const scarab::param_node &a_config=scarab::param_node())
	core (const core &a_orig)
	core (core &&a_orig)
virtual	~core ()
core &	operator= (const core &a_orig)
core &	operator= (core &&a_orig)
virtual sent_msg_pkg_ptr	send (request_ptr_t a_request) const
virtual sent_msg_pkg_ptr	send (reply_ptr_t a_reply) const
virtual sent_msg_pkg_ptr	send (alert_ptr_t a_alert) const
	snake_case_mv_referrable (std::string, address)
	snake_case_mv_accessible (unsigned, port)
	snake_case_mv_referrable (std::string, username)
	snake_case_mv_referrable (std::string, password)
	snake_case_mv_referrable (std::string, requests_exchange)
	snake_case_mv_referrable (std::string, alerts_exchange)
	snake_case_mv_referrable (std::string, heartbeat_routing_key)
	snake_case_mv_accessible (unsigned, max_payload_size)
	snake_case_mv_accessible (bool, make_connection)

Private Types
typedef std::shared_ptr< message_and_reply >	mar_ptr

Private Member Functions
void	do_cancellation (int a_code)
	snake_case_mv_referrable (receiver, msg_receiver)

Private Attributes
scarab::concurrent_queue< mar_ptr >	f_queue

Additional Inherited Members
Static Public Member Functions inherited from core
static bool	listen_for_message (amqp_envelope_ptr &a_envelope, amqp_channel_ptr a_channel, const std::string &a_consumer_tag, int a_timeout_ms=0, bool a_do_ack=true)
	return: if false, channel is no longer useable; if true, may be reused More...
Static Public Attributes inherited from core
static bool	s_offline = false
Protected Member Functions inherited from core
sent_msg_pkg_ptr	do_send (message_ptr_t a_message, const std::string &a_exchange, bool a_expect_reply) const
amqp_channel_ptr	send_withreply (message_ptr_t a_message, std::string &a_reply_consumer_tag, const std::string &a_exchange) const
bool	send_noreply (message_ptr_t a_message, const std::string &a_exchange) const
amqp_channel_ptr	open_channel () const
Static Protected Member Functions inherited from core
static bool	setup_exchange (amqp_channel_ptr a_channel, const std::string &a_exchange)
static bool	setup_queue (amqp_channel_ptr a_channel, const std::string &a_queue_name)
static bool	bind_key (amqp_channel_ptr a_channel, const std::string &a_exchange, const std::string &a_queue_name, const std::string &a_routing_key)
static std::string	start_consuming (amqp_channel_ptr a_channel, const std::string &a_queue_name)
static bool	stop_consuming (amqp_channel_ptr a_channel, std::string &a_consumer_tag)
static bool	remove_queue (amqp_channel_ptr a_channel, const std::string &a_queue_name)

Detailed Description

Asynchronous message sending.

Author

N.S. Oblath

This class allows a user to send message asynchronously. Messages are sent in a dedicated thread that runs the function execute_relayer(). Asynchronous operation is achieved using a concurrent queue to store messages that are submitted.

The primary user interface consists of send_async() and wait_for_reply(). The former immediately returns a special sent-message package that includes thread-synchonization objects. That package is then passed to the latter, which blocks while waiting for a reply.

Definition at line 37 of file relayer.hh.

Member Typedef Documentation

mar_ptr

typedef std::shared_ptr< message_and_reply > mar_ptr

private

Definition at line 102 of file relayer.hh.

wait_for_send_pkg_ptr

typedef std::shared_ptr< wait_for_send_pkg > wait_for_send_pkg_ptr

Definition at line 67 of file relayer.hh.

Constructor & Destructor Documentation

relayer()

relayer	(	const scarab::param_node &	a_config = scarab::param_node(),
		const std::string &	a_broker_address = "",
		unsigned	a_port = 0,
		const std::string &	a_auth_file = ""
	)

Definition at line 16 of file relayer.cc.

~relayer()

~relayer ( )

virtual

Definition at line 24 of file relayer.cc.

Member Function Documentation

do_cancellation()

void do_cancellation ( int  a_code )

private

Definition at line 80 of file relayer.cc.

execute_relayer()

void execute_relayer

(

)

Thread execution function: sends any messages that are submitted via the send functions.

Definition at line 28 of file relayer.cc.

send_async() [1/2]

relayer::wait_for_send_pkg_ptr send_async

(

request_ptr_t

a_request

)

const

Asynchronously send a request message Returns immediately, without blocking for send

Definition at line 87 of file relayer.cc.

send_async() [2/2]

relayer::wait_for_send_pkg_ptr send_async

(

alert_ptr_t

a_alert

)

const

Asynchronously send an alert message Returns immediately, without blocking for send

Definition at line 106 of file relayer.cc.

snake_case_mv_referrable()

snake_case_mv_referrable ( receiver  , msg_receiver    )

private

wait_for_reply() [1/2]

reply_ptr_t wait_for_reply	(	const wait_for_send_pkg_ptr	a_receive_reply,
		int	a_timeout_ms = 0
	)

User interface for waiting for a reply message. This can be called multiple times to receive multiple replies.

Parameters

a_receive_reply	The sent-message package from the request.
a_timeout_ms	Timeout for waiting for a reply; if it's 0, there will be no timeout.

Returns

Reply message

Definition at line 125 of file relayer.cc.

wait_for_reply() [2/2]

reply_ptr_t wait_for_reply	(	const wait_for_send_pkg_ptr	a_receive_reply,
		bool &	a_chan_valid,
		int	a_timeout_ms = 0
	)

User interface for waiting for a reply message. This can be called multiple times to receive multiple replies.

Parameters

[in]	a_receive_reply	The sent-message package from the request.
[in]	a_timeout_ms	Timeout for waiting for a reply; if it's 0, there will be no timeout.
[out]	a_chan_valid	Returns whether or not the channel is still valid for use after receiving a message.

Returns

Reply message

Definition at line 131 of file relayer.cc.

Member Data Documentation

f_queue

scarab::concurrent_queue< mar_ptr > f_queue

mutableprivate

Definition at line 104 of file relayer.hh.

---

The documentation for this class was generated from the following files:

• relayer.hh
• relayer.cc
