A heartbeater repeatedly sends an alert on a particular time interval. More...

#include <heartbeater.hh>

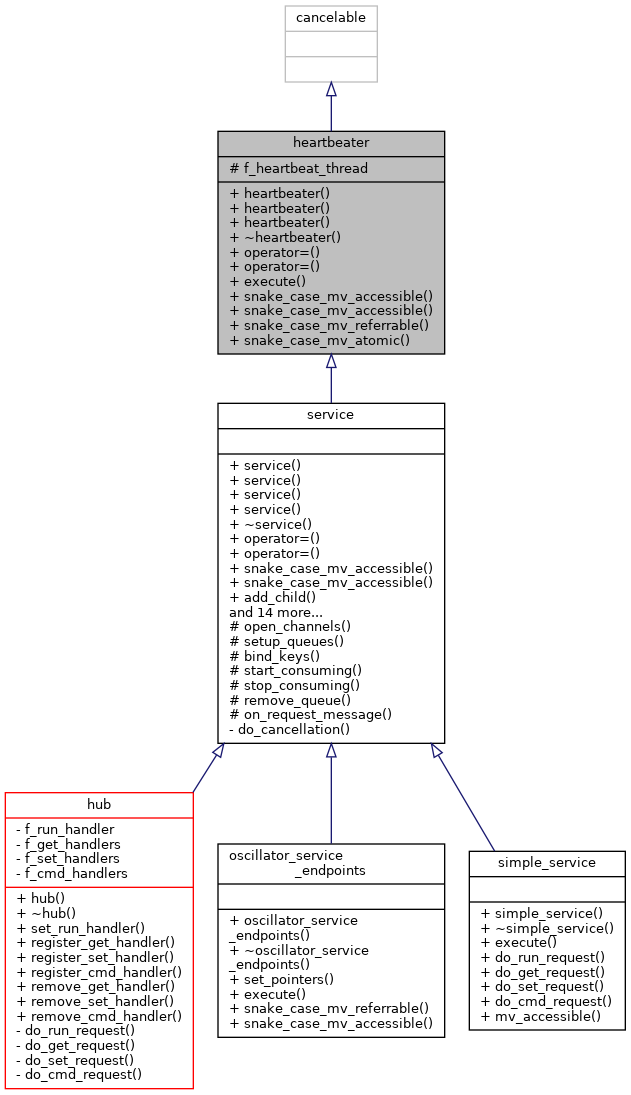

Inheritance diagram for heartbeater:

Public Member Functions
	heartbeater (service_ptr_t a_service=service_ptr_t())
	Primary constructor. A service pointer is required to be able to send messages. More...

	heartbeater (const heartbeater &)=delete

	heartbeater (heartbeater &&a_orig)

virtual	~heartbeater ()

heartbeater &	operator= (const heartbeater &)=delete

heartbeater &	operator= (heartbeater &&a_orig)

void	execute (const std::string &a_name, uuid_t a_id, const std::string &a_routing_key)

	snake_case_mv_accessible (unsigned, heartbeat_interval_s)
	Interval between heartbeat alerts (default: 60 s) More...

	snake_case_mv_accessible (unsigned, check_timeout_ms)
	Timing interval for the internal loop (default: 1000 ms) More...

	snake_case_mv_referrable (service_ptr_t, service)

	snake_case_mv_atomic (bool, stop)

Protected Attributes
std::thread	f_heartbeat_thread

Detailed Description

A heartbeater repeatedly sends an alert on a particular time interval.

Author: N.S. Oblath

This class is intended to be used as a mix-in to add heartbeat capabilities to another class by inheriting from it. See service as an example of its use.

The heartbeat is an alert sent to a pre-determined routing key, which is given as a parameter to the execute() function. The interval for sending the heartbeats is f_heartbeat_interval_s, which is in seconds. The default interval is 60 s.

If the heartbeat interval is 0, the sending of heartbeats is disabled.

The parameters provided upon execution are the name (a_name, e.g. the service name), a UUID (a_id), and the routing key (a_routing_key).

The payload of each heartbeat message will be:

{
    name: [a_name]
    id: [a_id]
}

The routing key to which the message will be sent is a_routing_key.a_name.

Definition at line 52 of file heartbeater.hh.

Constructor & Destructor Documentation

◆ heartbeater() [1/3]

heartbeater ( service_ptr_t a_service = service_ptr_t() )

Primary constructor. A service pointer is required to be able to send messages.

Definition at line 25 of file heartbeater.cc.

◆ heartbeater() [2/3]

heartbeater ( const heartbeater & )

delete

◆ heartbeater() [3/3]

heartbeater ( heartbeater && a_orig )

Definition at line 33 of file heartbeater.cc.

◆ ~heartbeater()

~heartbeater ( )

virtual

Definition at line 41 of file heartbeater.cc.

Member Function Documentation

◆ execute()

void execute	(	const std::string &	a_name,
		uuid_t	a_id,
		const std::string &	a_routing_key
	)

Starts the heartbeat process. Heartbeat alerts are emitted every heartbeat_interval_s seconds. If the interval is 0, then heartbeats are disabled.

Parameters

a_name	The name for the heartbeater (e.g. the service)
a_id	UUID for the heartbeater
a_routing_key	The base of the routing key for heartbeat alerts; will be postpended with a_name

Definition at line 53 of file heartbeater.cc.

◆ operator=() [1/2]

heartbeater& operator= ( const heartbeater & )

delete

◆ operator=() [2/2]

heartbeater & operator= ( heartbeater && a_orig )

Definition at line 44 of file heartbeater.cc.

◆ snake_case_mv_accessible() [1/2]

snake_case_mv_accessible	(	unsigned	,
		heartbeat_interval_s
	)

Interval between heartbeat alerts (default: 60 s)

◆ snake_case_mv_accessible() [2/2]

snake_case_mv_accessible	(	unsigned	,
		check_timeout_ms
	)

Timing interval for the internal loop (default: 1000 ms)

◆ snake_case_mv_atomic()

snake_case_mv_atomic	(	bool	,
		stop
	)

◆ snake_case_mv_referrable()

snake_case_mv_referrable	(	service_ptr_t	,
		service
	)

Member Data Documentation

◆ f_heartbeat_thread

std::thread f_heartbeat_thread

protected

Definition at line 83 of file heartbeater.hh.

The documentation for this class was generated from the following files:
