Receives and processes messages concurrently. More...

#include <receiver.hh>

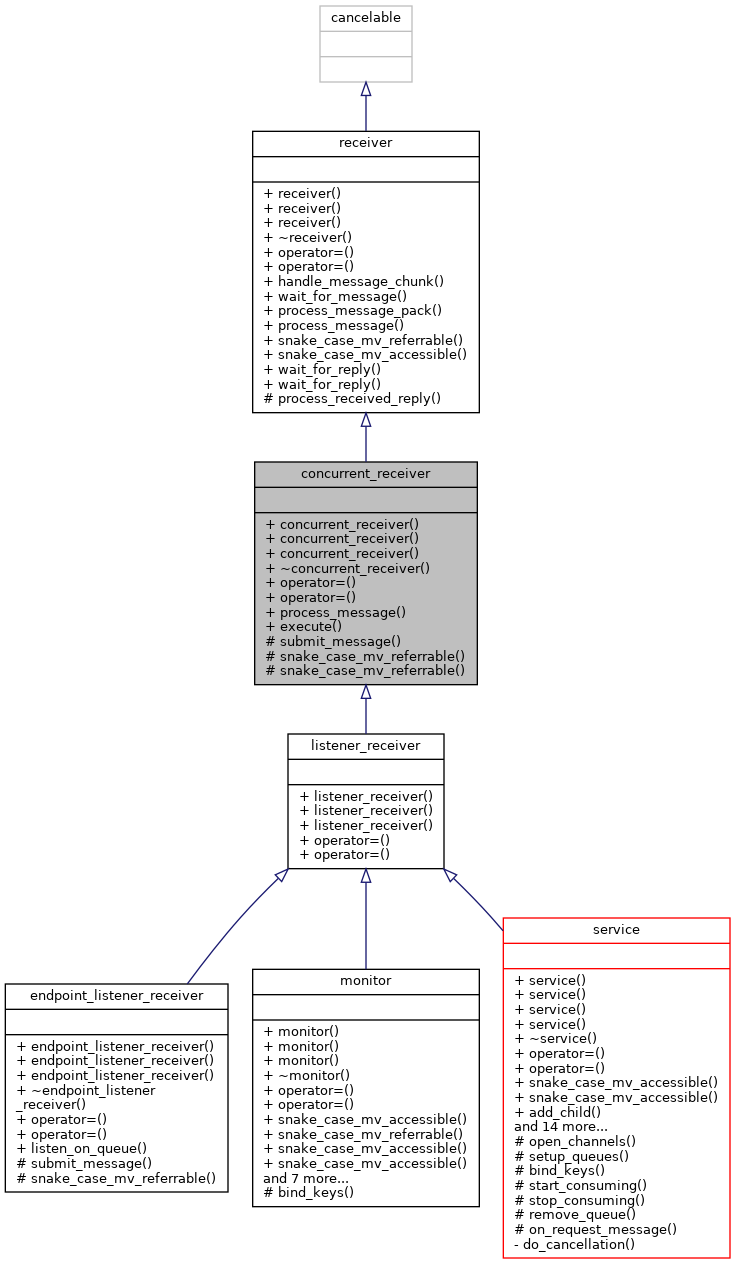

Inheritance diagram for concurrent_receiver:

Public Member Functions
	concurrent_receiver ()

	concurrent_receiver (const concurrent_receiver &)=delete

	concurrent_receiver (concurrent_receiver &&a_orig)

virtual	~concurrent_receiver ()

concurrent_receiver &	operator= (const concurrent_receiver &)=delete

concurrent_receiver &	operator= (concurrent_receiver &&a_orig)

virtual void	process_message (message_ptr_t a_message)
	Deposits the message in the concurrent queue (called by the listener) More...

void	execute ()
	Handles messages that appear in the concurrent queue by calling `submit_message()`. More...

Public Member Functions inherited from receiver
	receiver ()

	receiver (const receiver &a_orig)=delete

	receiver (receiver &&a_orig)

virtual	~receiver ()

receiver &	operator= (const receiver &a_orig)=delete

receiver &	operator= (receiver &&a_orig)

void	handle_message_chunk (amqp_envelope_ptr a_envelope)

void	wait_for_message (incoming_message_pack &a_pack, const std::string &a_message_id)

void	process_message_pack (incoming_message_pack &a_pack, const std::string &a_message_id)
	Converts a message pack into a Dripline message, and then submits the message for processing. More...

	snake_case_mv_referrable (incoming_message_map, incoming_messages)
	Stores the incomplete messages. More...

	snake_case_mv_accessible (unsigned, single_message_wait_ms)
	Wait time for message chunks from a single message. More...

reply_ptr_t	wait_for_reply (const sent_msg_pkg_ptr a_receive_reply, int a_timeout_ms=0)

reply_ptr_t	wait_for_reply (const sent_msg_pkg_ptr a_receive_reply, bool &a_chan_valid, int a_timeout_ms=0)

Protected Member Functions
virtual void	submit_message (message_ptr_t a_message)=0

	snake_case_mv_referrable (scarab::concurrent_queue< message_ptr_t >, message_queue)

	snake_case_mv_referrable (std::thread, receiver_thread)

Protected Member Functions inherited from receiver
reply_ptr_t	process_received_reply (incoming_message_pack &a_pack, const std::string &a_message_id)

Detailed Description

Receives and processes messages concurrently.

Author: N.S. Oblath

This class enables Dripline messages to be received and processed concurrently. It is intended to be used in conjuction with a listener, as in listener_receiver.

The typical use case involves three threads:

A listener gets messages from the AMQP channel (using listen_on_queue(), e.g. @ref service or @ref endpoint_listener_receiver) and callsreceiver::handle_message_chunk()`
A receiver has a timing thread waiting for multiple message chunks (if relevant); when the message is complete, concurrent_receiver::process_message() is called, which deposits the message in a concurrent queue.
A concurrent_receiver picks up the complete message from the concurrent queue, and processes the message using submit_message().

The execute() function implements thread 3.

A class deriving from concurrent_receiver must implement submit_message().

Definition at line 153 of file receiver.hh.

Constructor & Destructor Documentation

◆ concurrent_receiver() [1/3]

concurrent_receiver ( )

Definition at line 367 of file receiver.cc.

◆ concurrent_receiver() [2/3]

concurrent_receiver ( const concurrent_receiver & )

delete

◆ concurrent_receiver() [3/3]

concurrent_receiver ( concurrent_receiver && a_orig )

Definition at line 372 of file receiver.cc.

◆ ~concurrent_receiver()

~concurrent_receiver ( )

virtual

Definition at line 377 of file receiver.cc.

Member Function Documentation

◆ execute()

void execute ( )

Handles messages that appear in the concurrent queue by calling submit_message().

Definition at line 393 of file receiver.cc.

◆ operator=() [1/2]

concurrent_receiver& operator= ( const concurrent_receiver & )

delete

◆ operator=() [2/2]

concurrent_receiver & operator= ( concurrent_receiver && a_orig )

Definition at line 380 of file receiver.cc.

◆ process_message()

void process_message ( message_ptr_t a_message )

virtual

Deposits the message in the concurrent queue (called by the listener)

Reimplemented from receiver.

Definition at line 387 of file receiver.cc.

◆ snake_case_mv_referrable() [1/2]

snake_case_mv_referrable	(	scarab::concurrent_queue< message_ptr_t >	,
		message_queue
	)

protected

◆ snake_case_mv_referrable() [2/2]

snake_case_mv_referrable	(	std::thread	,
		receiver_thread
	)

protected

◆ submit_message()

virtual void submit_message ( message_ptr_t a_message )

protectedpure virtual

Handles messages according to the use case. It's to be implemented by the class inheriting from concurrent_receiver For a concrete example, see service or endpoint_listener_receiver.

Implemented in service, endpoint_listener_receiver, and monitor.
